RCDC系列風冷自卸式電磁除鐵器,是在RCDA除鐵器的基礎上增加自動卸鐵機構的帶式除鐵器。
組成部分:不銹鋼刮板、環型膠帶、擺線針輪減速機,工作框架等。無需停電,自動清理,形成了除鐵自動化,主要用于鋼鐵廠、水泥廠、鑄造廠等礦渣含鐵量大的物料中除鐵。
技術參數:

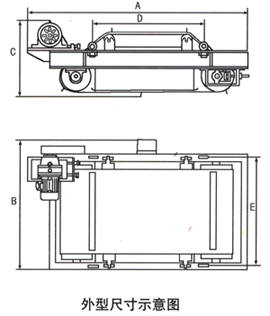

型號 參數 項目 | 適應帶寬 mm | 額定吊高 mm | 磁場強度 ≥mT | 物料厚度 ≤mm | 勵磁功率 ≤Kw | 驅動功率 ≤Kw | 適應帶速 ≤m/s | 重量 Kg | 外型尺寸mm | ||||
A | B | C | D | E | |||||||||
RCDC-5 | 500 | 150 | 60 | 100 | 1.2 | 1.1 | 2.5 | 950 | 4750 | 800 | 650 | 500 | 650 |
RCDC-6 | 650 | 200 | 60 | 150 | 2.5 | 2.2 | 1150 | 2000 | 900 | 700 | 600 | 750 | |
RCDC-8 | 800 | 250 | 70 | 200 | 4.5 | 2.2 | 1600 | 2150 | 1050 | 780 | 800 | 850 | |
RCDC-10 | 1000 | 300 | 70 | 250 | 7.0 | 3.0 | 2200 | 2400 | 1310 | 810 | 1180 | 1150 | |
RCDC-12 | 1200 | 350 | 70 | 300 | 9.0 | 3.0 | 3000 | 2850 | 1580 | 830 | 1520 | 1380 | |
RCDC-14 | 1400 | 400 | 70 | 350 | 12.0 | 4.0 | 4100 | 3150 | 1800 | 980 | 1630 | 1410 | |
RCDC-16 | 1600 | 450 | 70 | 400 | 15.0 | 4.0 | 4800 | 3550 | 1950 | 1050 | 1790 | 1500 | |
RCDC-18 | 1800 | 500 | 70 | 450 | 18.0 | 5.5 | 7500 | 4350 | 2200 | 1140 | 2120 | 2040 | |
RCDC-20 | 2000 | 550 | 70 | 500 | 23.0 | 5.5 | 11800 | 4650 | 2480 | 1280 | 2380 | 2300 |
